Solar panel · Canadian Solar

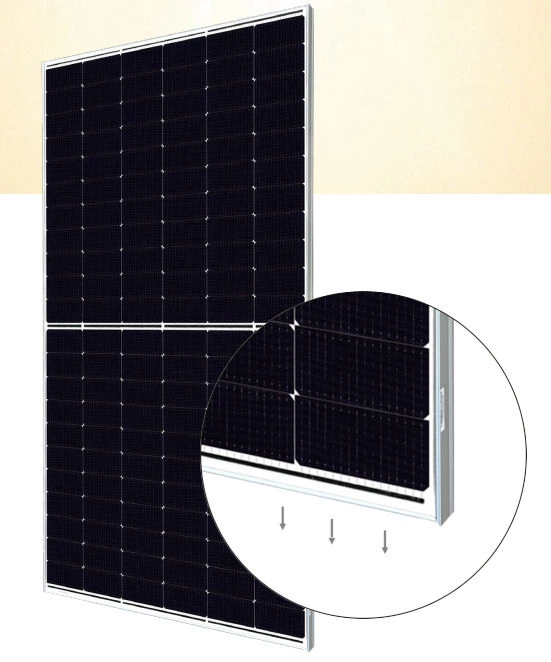

TOPBiHiKu6 (CS6.2-66TB)
The figures below come from the Canadian Solar datasheet. Choose the version named on your quote to see its exact values.
- Rated power
- 600 W
- Efficiency
- 22.2 %
- Product warranty
- 12 years
Manufacturer’s document · TOPBiHiKu6 (CS6.2-66TB)
CS6.2-66TB-600: Specifications
Power and efficiency
See the test conditions the manufacturer states.
- Rated power
- 600 W
- Efficiency
- 22.2 %
Size and weight
The dimensions help plan the layout on your roof.
- Dimensions
- 2,382 × 1,134 × 30 mm
- Weight
- 32.8 kg
Electrical values
These values are used to design the installation.
- Voltage at maximum power (Vmp)
- 40.4 V
- Current at maximum power (Imp)
- 14.86 A
- Open-circuit voltage (Voc)
- 47.6 V
- Short-circuit current (Isc)
- 15.85 A
- Maximum system voltage
- 1,500 V
- Maximum series fuse rating
- 35 A
Performance in heat
These coefficients describe how performance changes with temperature.
- Temperature coefficient of power
- -0.29 %/°C
- Temperature coefficient of voltage
- -0.25 %/°C
- Temperature coefficient of current
- 0.05 %/°C
Warranties
Check the manufacturer’s terms for this model in the UK.
- Product warranty
- 12 years
- Power warranty
- 30 years
- Guaranteed power retained
- 87.4 %
