Home battery · FoxESS

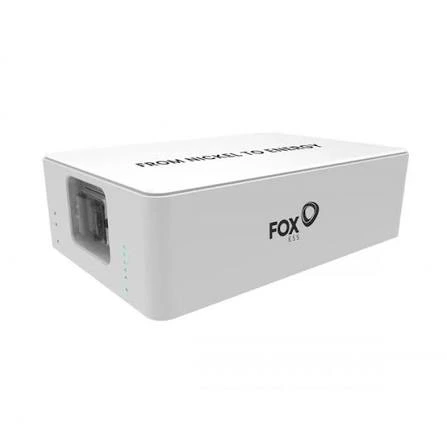

EQ5000
The figures below come from the FoxESS datasheet. Choose the version named on your quote to see its exact values.
- Usable capacity
- 8.856 kWh
- Nominal capacity
- 9.84 kWh
- Round-trip efficiency
- >95 %
Manufacturer’s document · EQ5000
EQ5000-L2: Specifications
Size and weight
Size and weight help you plan where the battery goes and what it is mounted on.
- Dimensions
- 380 × 570 × 380 mm
- Weight
- 86 kg
Storage
Usable capacity is the energy you can actually use. The other values help check compatibility with the hybrid inverter and the system’s losses.
- Usable capacity
- 8.856 kWh
- Nominal capacity
- 9.84 kWh
- Nominal voltage
- 128 V
- Max. continuous current (charge/discharge)
- 50 A
- Round-trip efficiency
- >95 %
- Chemistry
- LFP
