Solar panel · JA Solar

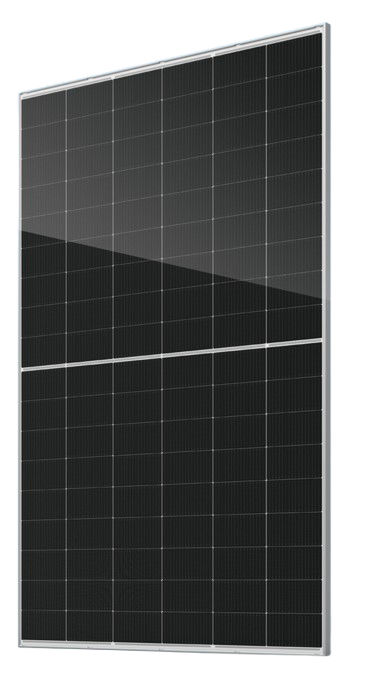

DeepBlue 4.0 Pro JAM54D40 /LR
The figures below come from the JA Solar datasheet. Choose the version named on your quote to see its exact values.
- Rated power
- 465 W
- Efficiency
- 23.3 %
- Product warranty
- 15 years
Manufacturer’s document · JAM54D40-450-475/LR (sun.store listing of the JA Solar sheet)
JAM54D40-465/LR: Specifications
Power and efficiency
See the test conditions the manufacturer states.
- Rated power
- 465 W
- Efficiency
- 23.3 %
Size and weight
The dimensions help plan the layout on your roof.
- Dimensions
- 1,762 × 1,134 mm
- Weight
- 22 kg
Electrical values
These values are used to design the installation.
- Voltage at maximum power (Vmp)
- 33.5 V
- Current at maximum power (Imp)
- 13.88 A
- Open-circuit voltage (Voc)
- 40.2 V
- Short-circuit current (Isc)
- 14.65 A
Performance in heat
These coefficients describe how performance changes with temperature.
- Temperature coefficient of power
- -0.29 %/°C
Warranties
Check the manufacturer’s terms for this model in the UK.
- Product warranty
- 15 years
- Power warranty
- 30 years
