Solar panel · JinkoSolar

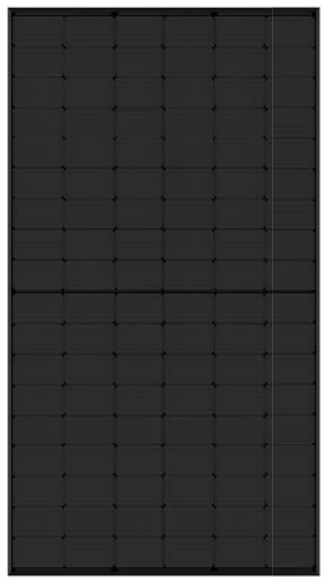

Tiger Neo 54HL4R-B (all black)
The figures below come from the JinkoSolar datasheet. Choose the version named on your quote to see its exact values.
- Rated power
- 420 W
- Efficiency
- 21.02 %
- Product warranty
- 25 years
Manufacturer’s document · F1.3-EN
JKM420N-54HL4R-B: Specifications
Power and efficiency
See the test conditions the manufacturer states.
- Rated power
- 420 W
- Efficiency
- 21.02 %
Size and weight
The dimensions help plan the layout on your roof.
- Dimensions
- 1,762 × 1,134 × 30 mm
- Weight
- 22 kg
Electrical values
These values are used to design the installation.
- Voltage at maximum power (Vmp)
- 32.16 V
- Current at maximum power (Imp)
- 13.06 A
- Open-circuit voltage (Voc)
- 38.74 V
- Short-circuit current (Isc)
- 13.51 A
Performance in heat
These coefficients describe how performance changes with temperature.
- Temperature coefficient of power
- -0.29 %/°C
- Temperature coefficient of voltage
- -0.25 %/°C
- Temperature coefficient of current
- 0.045 %/°C
Warranties
Check the manufacturer’s terms for this model in the UK.
- Product warranty
- 25 years
- Power warranty
- 30 years
- Guaranteed power retained
- 87.4 %
