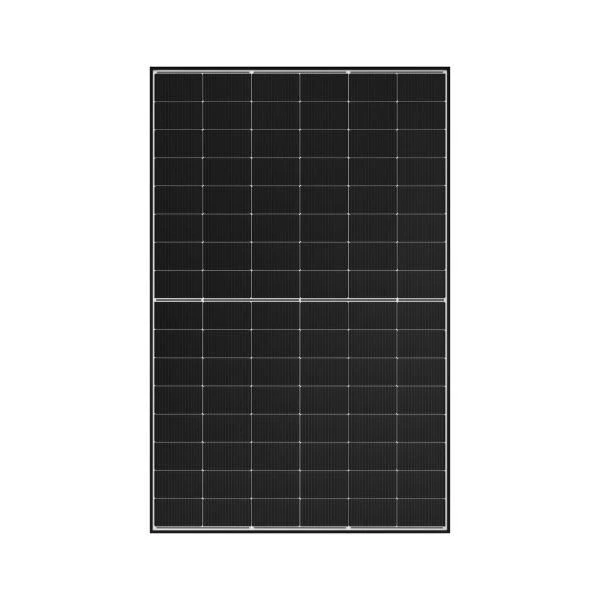

Solar panel · LONGi
Hi-MO 7 (LR8-48HGD)
The figures below come from the LONGi datasheet. Choose the version named on your quote to see its exact values.
- Rated power
- 430 W
- Efficiency
- 21.5 %
- Product warranty
- 12 years
Manufacturer’s document · Hi-MO 7 (LR8-48HGD)
LR8-48HGD-430M: Specifications
Power and efficiency
See the test conditions the manufacturer states.
- Rated power
- 430 W
- Efficiency
- 21.5 %
Size and weight
The dimensions help plan the layout on your roof.
- Dimensions
- 1,762 × 1,134 × 30 mm
- Weight
- 23 kg
Electrical values
These values are used to design the installation.
- Voltage at maximum power (Vmp)
- 28.47 V
- Current at maximum power (Imp)
- 15.11 A
- Open-circuit voltage (Voc)
- 34.56 V
- Short-circuit current (Isc)
- 15.81 A
- Maximum system voltage
- 1,500 V
- Maximum series fuse rating
- 35 A
Performance in heat
These coefficients describe how performance changes with temperature.
- Temperature coefficient of power
- -0.28 %/°C
- Temperature coefficient of voltage
- -0.23 %/°C
- Temperature coefficient of current
- 0.045 %/°C
Warranties
Check the manufacturer’s terms for this model in the UK.
- Product warranty
- 12 years
- Power warranty
- 30 years
- Guaranteed power retained
- 87.4 %
